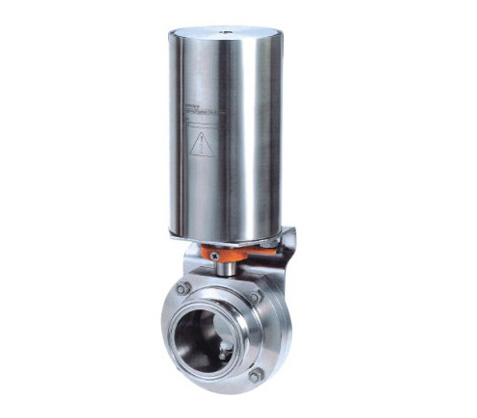

| 气动蝶阀 | |||||||
 | Size | O | G | A | Dc | H | H1 |
| DN15 | 78.0 | 34×1/8 | 66.0 | 85.0 | 222.5 | 180.5 | |
| DN20 | 78.0 | 44×1/8 | 66.0 | 85.0 | 222.5 | 180.5 | |
| DN25 | 78.0 | 52×1/8 | 66.0 | 85.0 | 222.5 | 180.5 | |
| DN32 | 88.0 | 58×1/8 | 70.0 | 85.0 | 226.5 | 180.5 | |
| DN40 | 90.0 | 65×1/8 | 74.0 | 85.0 | 228.5 | 180.5 | |
| DN50 | 106.0 | 78×1/8 | 76.0 | 85.0 | 236.5 | 180.5 | |
| DN65 | 124.0 | 95×1/8 | 84.0 | 85.0 | 245.5 | 180.5 | |
| DN80 | 139.0 | 110×1/4 | 90.0 | 85.0 | 253.0 | 180.5 | |
| DN100 | 159.0 | 130×1/4 | 105.0 | 85.0 | 263.0 | 180.5 | |
| DN125 | 185.0 | 160×1/4 | 130.0 | 133.0 | 415.5 | 296.0 | |
| DN150 | 215.0 | 190×1/4 | 150.0 | 133.0 | 430.5 | 296.0 | |
